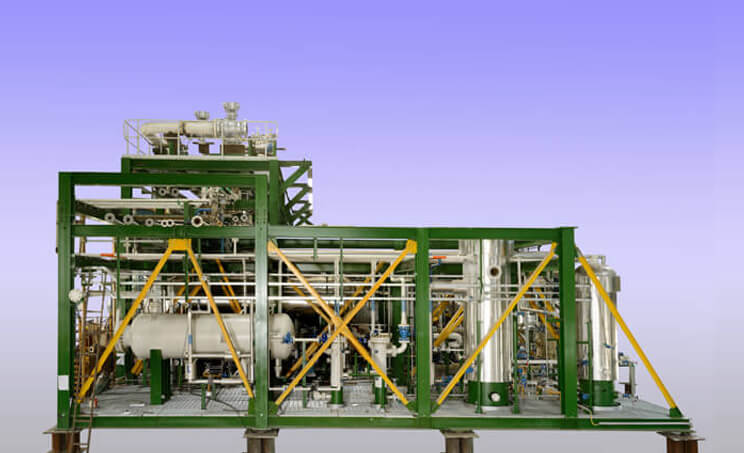

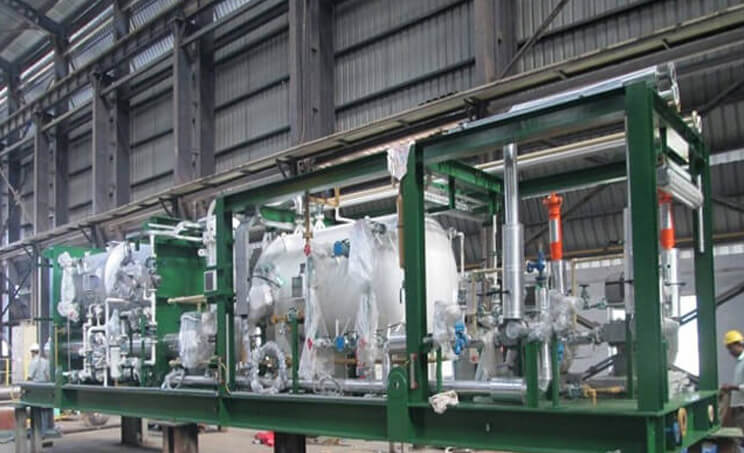

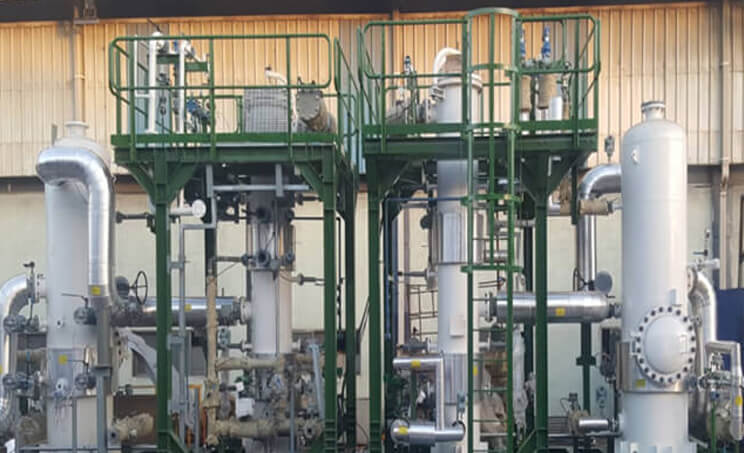

Modular Process Skids

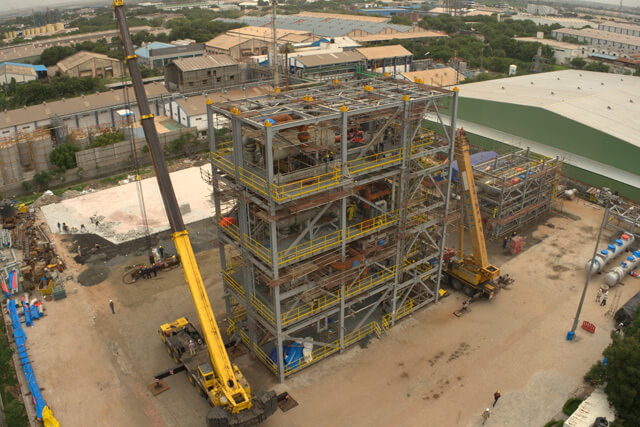

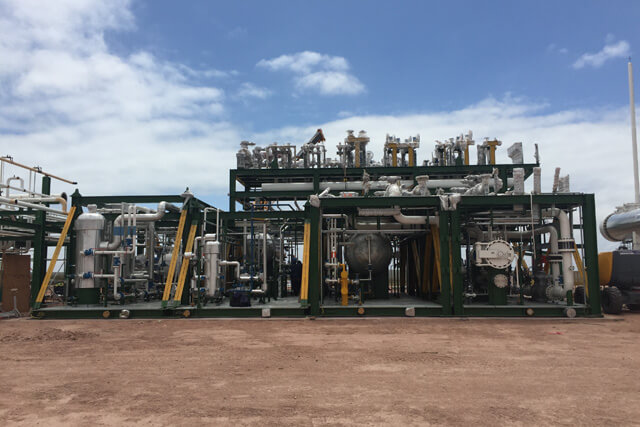

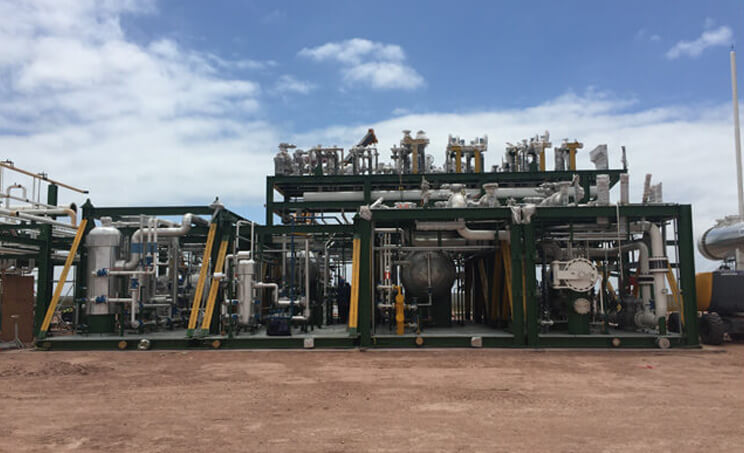

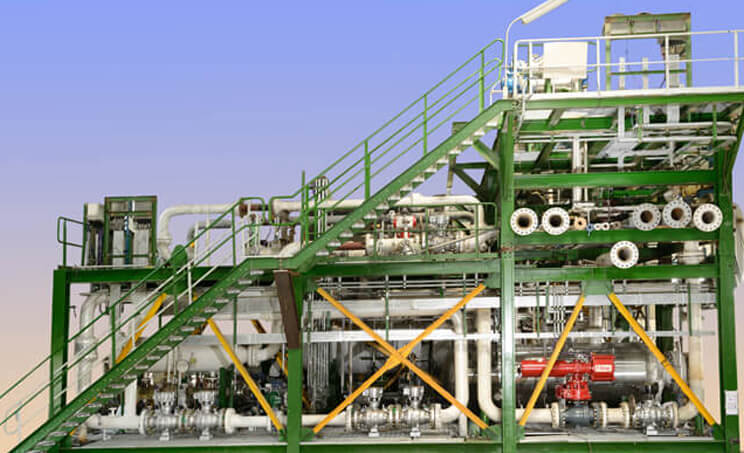

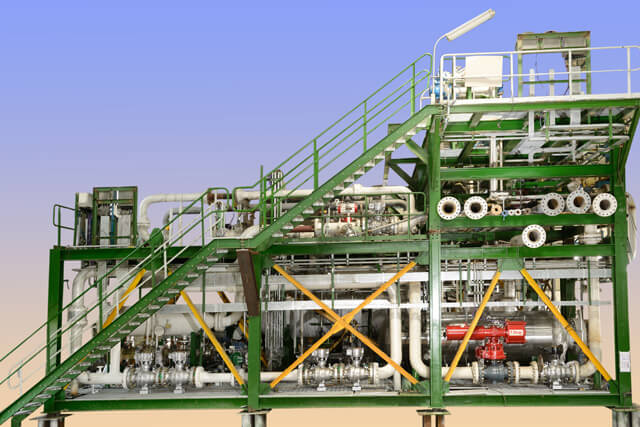

Praj’s skids and systems are designed to achieve superior performance for the industry while also taking care of the environment. On all the three axes viz. complexity, thickness and metallurgy, Praj has risen upward. Skids are plug and play systems in a larger plant. Designing skids requires detailed engineering inputs and thorough understanding of the process. Explore this section to find out more.

Oil & gas separation 2/3 phases

2 & 3 phase separators remove liquids from natural gas. Vertical separators are ideal in case of space constraints at the well site or gathering station whereas horizontal separators are suitable for large quantities of liquids.Gas-liquid separation parameters vary from one well to another.

Praj has the right equipment to fit your diverse needs. We offer top quality 2 & 3 phase separators in horizontal and vertical designs that can be configured for both low and high-pressure applications.

Gas sweetening – H2S and CO2 removal

Praj offers amine plants for the removal of H2 Sand CO2 from a gas stream. The solvent amine is provided in different specifications depending on the type of contaminant to be removed. Equipment are delivered, packaged and modularized with a view to reduce costs of assembly and installation.

Dehydration – glycol/molecular sieves

Molecular sieve dehydration units provide an effective means to remove water from a natural gas stream.Praj offers monoethylene glycol (MEG) modules used by the gas dew point adjustment process to prevent formation of hydrates and clogging of the equipment. This procedure includes - regeneration module, degassing flash separator, filters for removal of hydrocarbons and solids particles, regeneration module and heat exchanger where the MEG transfer is cooled and serves to feed the pump suction. Thus, a water-poor high-pressure glycol stream is delivered to the skid edge, reinjected into the gas treatment plant closing the circuit. Praj also offers triethylene glycol (TEG) modules for the removal of water in natural gas prior to being sent to a pipeline or entrance of a gas plant. This absorption process is preferably carried out at high pressure and is given inside a tower which allows the water vapor to be absorbed by the liquid TEG. It is then sent to a regeneration module.

Gas conditioning

The design approach is based on process simulation to determine the condensing temperature, hydrate formation temperature, water and constituent dew point before deciding the individual stages of cleaning and conditioning.

Gas conditioning process has 2/3 stages

  • Particulate removal– dust, contaminants, rust and slug from pipelines is removed by mechanical separation and filtration

  • Removal of condensables- handling of water and other condensing constituents

  • Provision to superheat or dew point depression

Dew point adjustment

Praj offers dew point adjustment plants for gas is conditioning so it meets the pipeline transportation specifications. This process increases removes the heaviest components, improving the quality and value. The conditioned gas at its dew point improves the detonation point and allows its use as fuel efficiently in engines, turbines, ovens and boilers. This adjustment can be achieved by the Joule-Thompson effect or by mechanical cooling.

Praj also offers and has commendable references in modularisation of chemical plants and industrial gas systems.

Engineered Products

Heaters

Heater is used to heat fuel gas at power generation plants, compressor stations, and wellheads.Gas is heated before its pressure is reduced. Heating fuel gas while it is still at a highpressure prevents ice crystals and hydrates formation in the lines when its pressure is reduced for combustion. Ice and hydrates can cause major damage to the gas-fired turbines and other equipment.

Heater is also required to heat crude oil at offshore platforms and refineries. Oil is heated to reduce viscosity for easy pumping.

Praj designs a range of heaters and provides skateboard mounted heaters with combustion frame and associated pipes.

We offer-
  • Carbon steel – all grades, including NACE, SSC, HIC
  • Alloy steel – various grades & combination of Cr, Ni, Mo, Ti etc
  • Non ferrous – Cu, Ni, Brass, Co, Ti and their alloys
  • Stainless steel – Austenitic, Ferritic, Duplex and Super Duplex
  • Clad steel – CS and LAS with Cu-Ni, Monel, Inconel, SS, Ti, Ni cladding

Flaring Systems

Following factors determine an efficient flare design –

Following factors determine an efficient flare design –

Drilling Fluid Products

In collaboration with VEW Engineering, Praj offers liquid mud plants (PV LiquimudTM) in mixing, storing and reconditioning of drilling fluids for oil and gas exploration. We supply skid mounted mixing tank assembly, a plurality of nestable tanks and entire piping assembly. PV LiquimudTM is the most reliable product for the exploration industry in terms of design and quality standards.

  • Designand manufacturing in compliance with ISO and global standards
  • Global references with country specific compliances like GOST R, UkrSEPRRO, AS, CRN, DOSH, MOM etc
  • State of art manufacturing facility at Kandla SEZ, well connected by roads and international ports
  • Fabrication expertise in almost all grades of carbon and stainless steel with inner lining requirement as specified
  • Well established quality standards and assurance system

Oil & gas separation 2/3 phases

2 & 3 phase separators remove liquids from natural gas. Vertical separators are ideal in case of space constraints at the well site or gathering station whereas horizontal separators are suitable for large quantities of liquids.Gas-liquid separation parameters vary from one well to another.

Praj has the right equipment to fit your diverse needs. We offer top quality 2 & 3 phase separators in horizontal and vertical designs that can be configured for both low and high-pressure applications.

Gas sweetening – H2S and CO2 removal

Praj offers amine plants for the removal of H2 Sand CO2 from a gas stream. The solvent amine is provided in different specifications depending on the type of contaminant to be removed. Equipment are delivered, packaged and modularized with a view to reduce costs of assembly and installation.

Dehydration – glycol/molecular sieves

Molecular sieve dehydration units provide an effective means to remove water from a natural gas stream.Praj offers monoethylene glycol (MEG) modules used by the gas dew point adjustment process to prevent formation of hydrates and clogging of the equipment. This procedure includes - regeneration module, degassing flash separator, filters for removal of hydrocarbons and solids particles, regeneration module and heat exchanger where the MEG transfer is cooled and serves to feed the pump suction. Thus, a water-poor high-pressure glycol stream is delivered to the skid edge, reinjected into the gas treatment plant closing the circuit. Praj also offers triethylene glycol (TEG) modules for the removal of water in natural gas prior to being sent to a pipeline or entrance of a gas plant. This absorption process is preferably carried out at high pressure and is given inside a tower which allows the water vapor to be absorbed by the liquid TEG. It is then sent to a regeneration module.

Gas conditioning

The design approach is based on process simulation to determine the condensing temperature, hydrate formation temperature, water and constituent dew point before deciding the individual stages of cleaning and conditioning.

Gas conditioning process has 2/3 stages

  • Particulate removal– dust, contaminants, rust and slug from pipelines is removed by mechanical separation and filtration

  • Removal of condensables- handling of water and other condensing constituents

  • Provision to superheat or dew point depression

Dew point adjustment

Praj offers dew point adjustment plants for gas is conditioning so it meets the pipeline transportation specifications. This process increases removes the heaviest components, improving the quality and value. The conditioned gas at its dew point improves the detonation point and allows its use as fuel efficiently in engines, turbines, ovens and boilers. This adjustment can be achieved by the Joule-Thompson effect or by mechanical cooling.

Praj also offers and has commendable references in modularisation of chemical plants and industrial gas systems.
